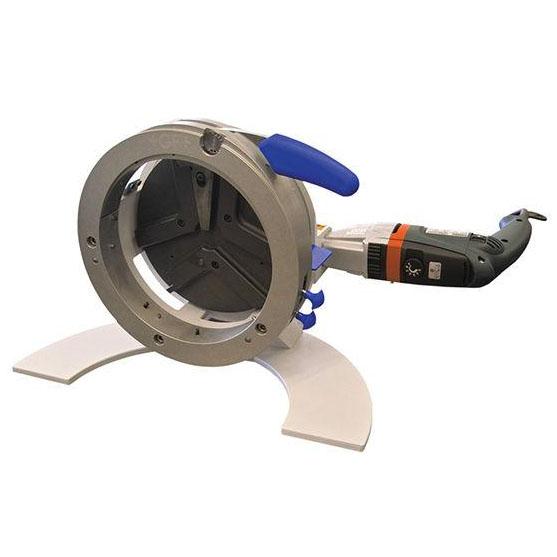

RPG 8.6

Designed for burr-free squaring of thin-walled stainless steel tubes. Clean and secure working area with a clear view of the cutting head. Machine with rotating/removable bench stand.

• Weight 20.5kg
• Squaring tube ends with a high-quality finish
• Burr-free and square
• Beveling possible with a special tool holder
• Quick clamping system for tools, clamping shells and tubes
• Preparation of thin-walled stainless steel tubes (V4A)
• High-performance coated tool bit with two cutting edges
• Built-in electronic speed regulation
• Micrometer feed for optimum results
• No additional tools required for operation
• Space saving, light weight and portable machine for a mobile and secure application

Wall Thickness Max.:
3.6

Pipe OD Min.
50.80 - 219.10

Power [KW] / [HP]:
7 - 18

Speed of the Tool (RPM):
7 - 18
