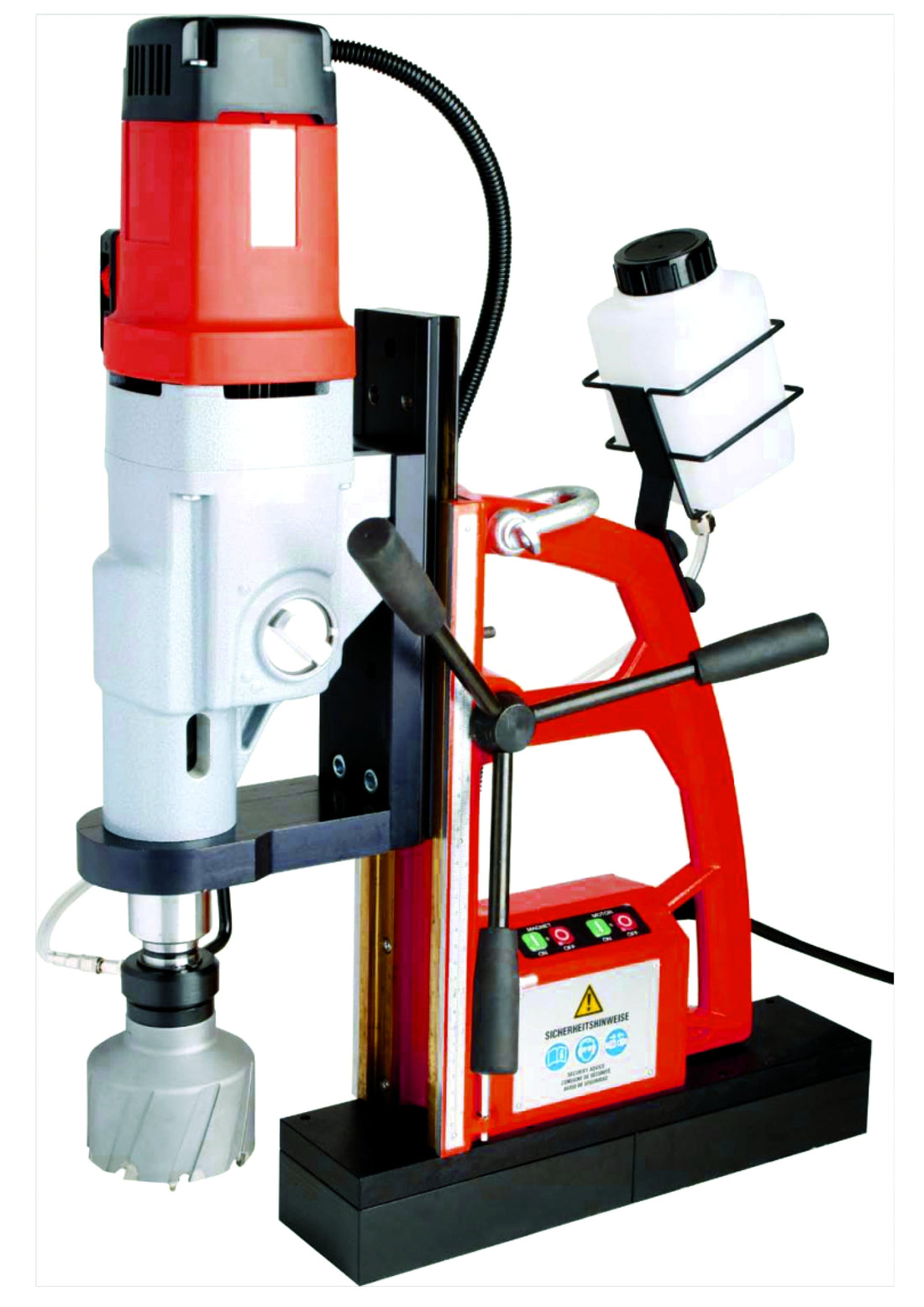

Excision EM130 Magnetic Drill
$9,099.42
Ex GST
The EM130 Magnetic Drill boasts a 4-Step Variable Speed Oil Bath Gearbox for varying cutting speeds and brass guides for increased longevity.
- 6 Coil 32,000N Magnet
- 4-Step Variable Speed Oil Bath Gearbox
- Slow speed range for large diameter cutting
- Tapping capacity up to M42
- Twist drill capacity up to 45mm
- Durable touch pad for ergonomic use
- Solid brass guides
- 230mm Stroke
| Drill Features and Specifications | |
| Core Drill Dimensions |
12.0-130.0mm/20.0-50.0mm (extra long 110mm) |
| Cutting Depth | 50.0mm/110.0mm |
| Twist Drill |
Up to 45.0mm with MT4 DIN 345 direct |
| Counter-Boring |
10.0-80.0mm |
| Tapping |
With Tapping Attachment: Up to M42 |
| Arbors |
MT4 |
| Stroke |
230mm |
| Height Adjustment |
100mm |
| 4-Speed Gearbox |
1. Step 50-150rpm 2. Step 75-239rpm 3. Step 100-310rpm 4. Step 160-490rpm |
| Power Consumption |
2,500W (230V) |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
5,000N/33,000N |
| Magnetic Base |
92—400mm |
| Weight |
34.0Kg |
