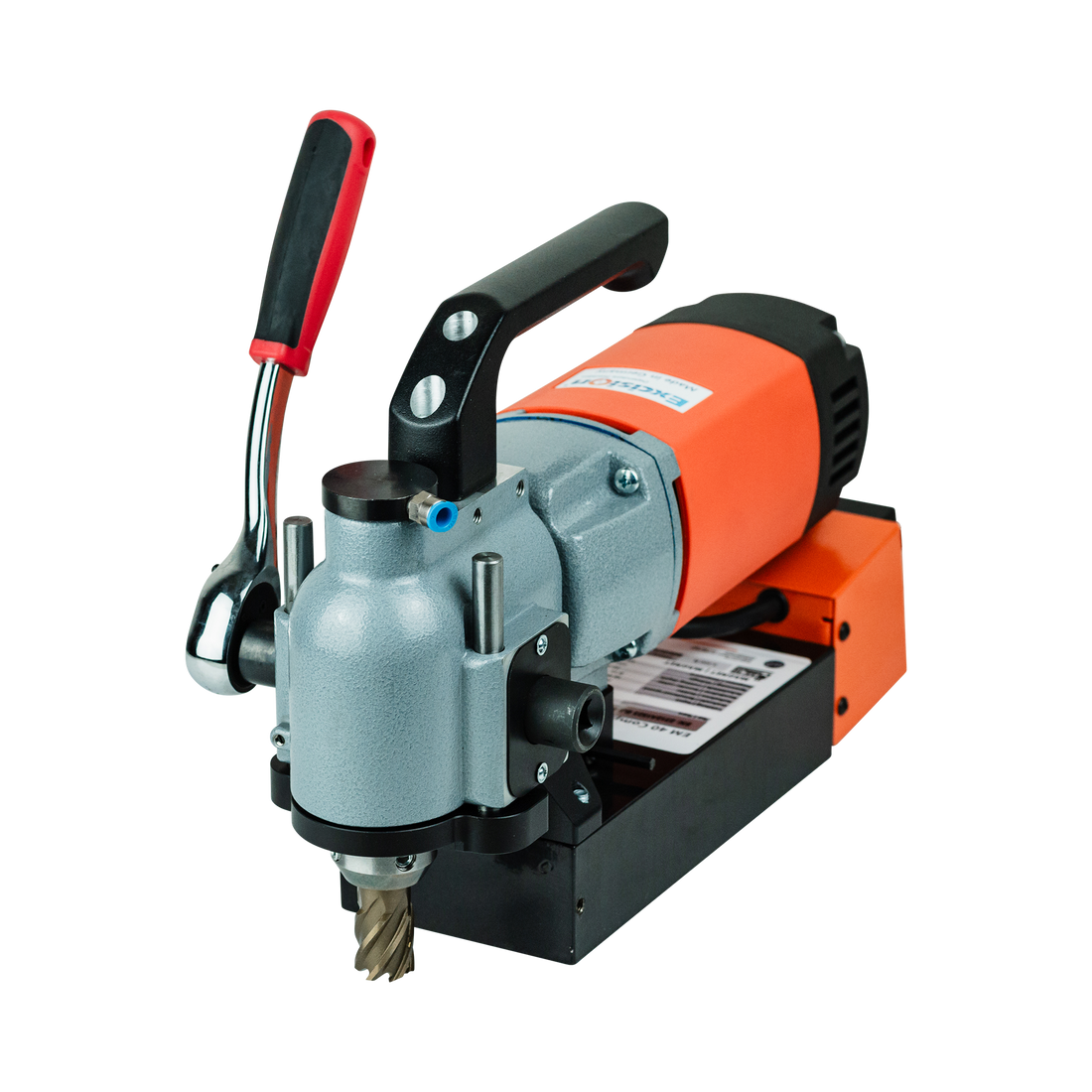

Excision V40 Compact Magnetic Drill
$3,267.00
Ex GST
The V40 Compact Magnetic Drill is optimized for use in difficult-to-reach locations, with a minimum height of 185mm. Its two-sided handle mount allows it to be used with either left or right hands, and it can accommodate up to 30mm cutter depth with a 19mm Weldon shank.
- Minimum height of 185mm
- 2 Coil 16,000N Magnetic Adhesion
- 19mm Weldon Shank - takes standard 30mm depth cutters
- Dual Left & Right Hand Side Handle Mounting
- Integrated Coolant System with Coolant Bottle
- Complete with 18mm Cutter and Pin
- 45mm stroke
| Drill Features and Specifications | |
 |
|
| Core Drill Dimensions |
Ø 12.0 - 40.0 MM |
| Cutting Depth |
30 mm |
| Counter-Boring |
10.0-32.0mm |
| Arbors |
19mm Weldon Shank |
| Stroke |
45mm |
| 1-Speed Gearbox |
450rpm |
| Power Consumption |
900W |
| Voltage |
230V 50/60Hz |
| Magnet Holding Force |
22.000N |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,100N/16,000N |
| Magnetic Base |
95×200mm |
| Weight |
12.5Kg |
