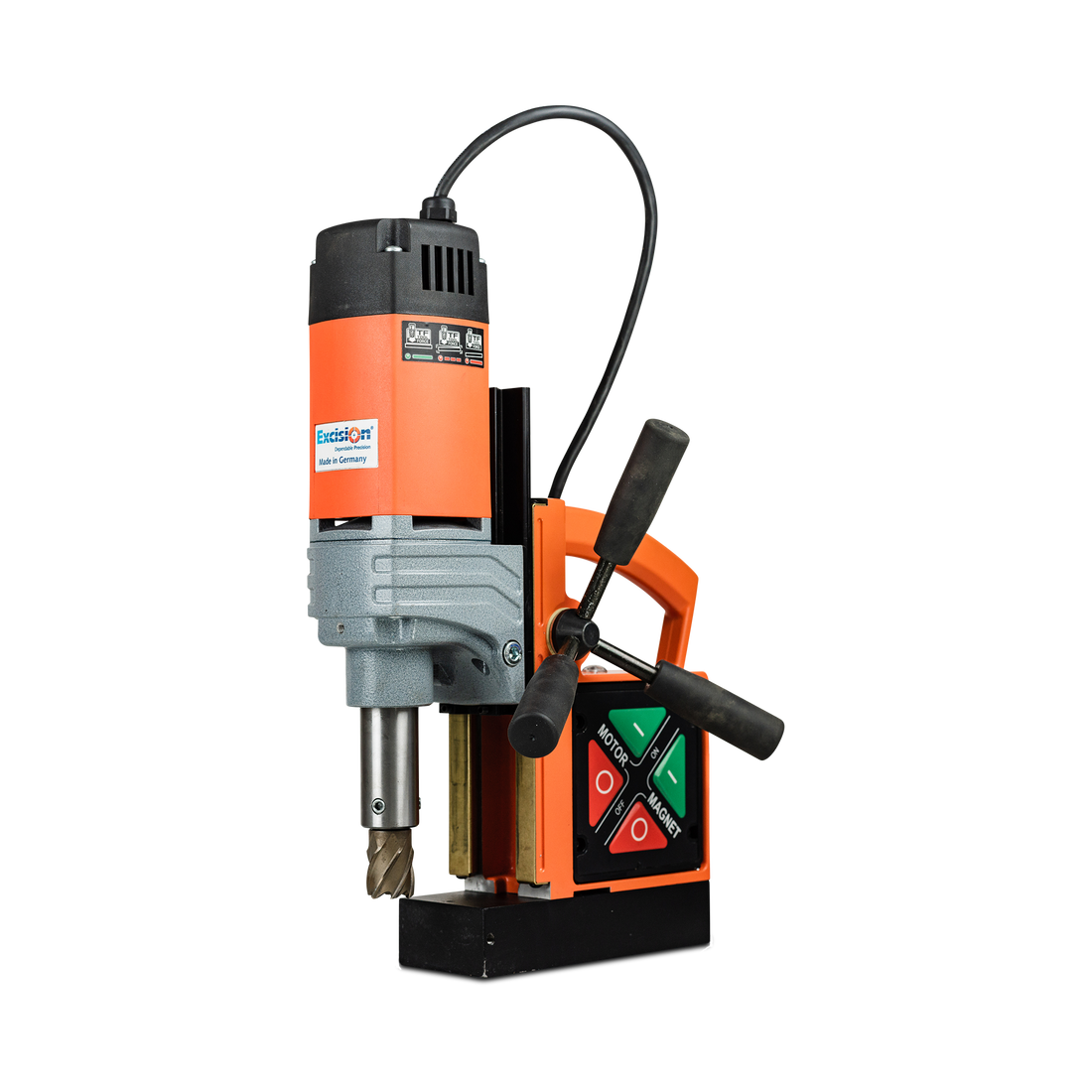

Excision EM40 Magnetic Drill
$2,013.00
Ex GST
Made in Germany, the Excision EM 40 is the flagship of Excision's Magnetic based drill range. With 40mm capacity and advanced safety features, this is the machine for industrial workloads. Double height adjustment allows a broad range of applications including the use of a standard 13mm chuck and jobber drill.
- 2 Coil 9,000N Magnetic adhesion for industrial use
- Spring loaded guides for rigid gliding and reduced vibration
- Height adjustable slide enables an increased range of applications including standard twist drills
- Smart start feature protects the motor to increase longevity
- Direct Weldon arbor type spindle for use with all 19mm shank core drills
- Durable touch pad for ergonomic use
- Hybrid relays to protect circuit board from voltage spikes
- Integrated coolant system to increase the life of your core drills
| Product Specifications | |
 |
|
| Core Drill Dimensions | 12.0-40.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm |
| Counter-Boring |
10.0-40.0mm |
| Arbors |
Quick-Release Chuck |
| Stroke |
129mm |
| Height Adjustment |
86mm |
| Gearbox-On-load Speed |
450rpm |
| Power Consumption |
1,100WÂ |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,100N/9,000N |
| Magnetic Base |
70×185mm |
| Weight |
11.5Kg |
| Scope of Delivery | |
| EM40 Magnetic Drill |
âš« |
| Carrying Case |
âš« |
| Safety Strap |
âš« |
| Coolant Device |
âš« |
| Operating Instructions |
âš« |
