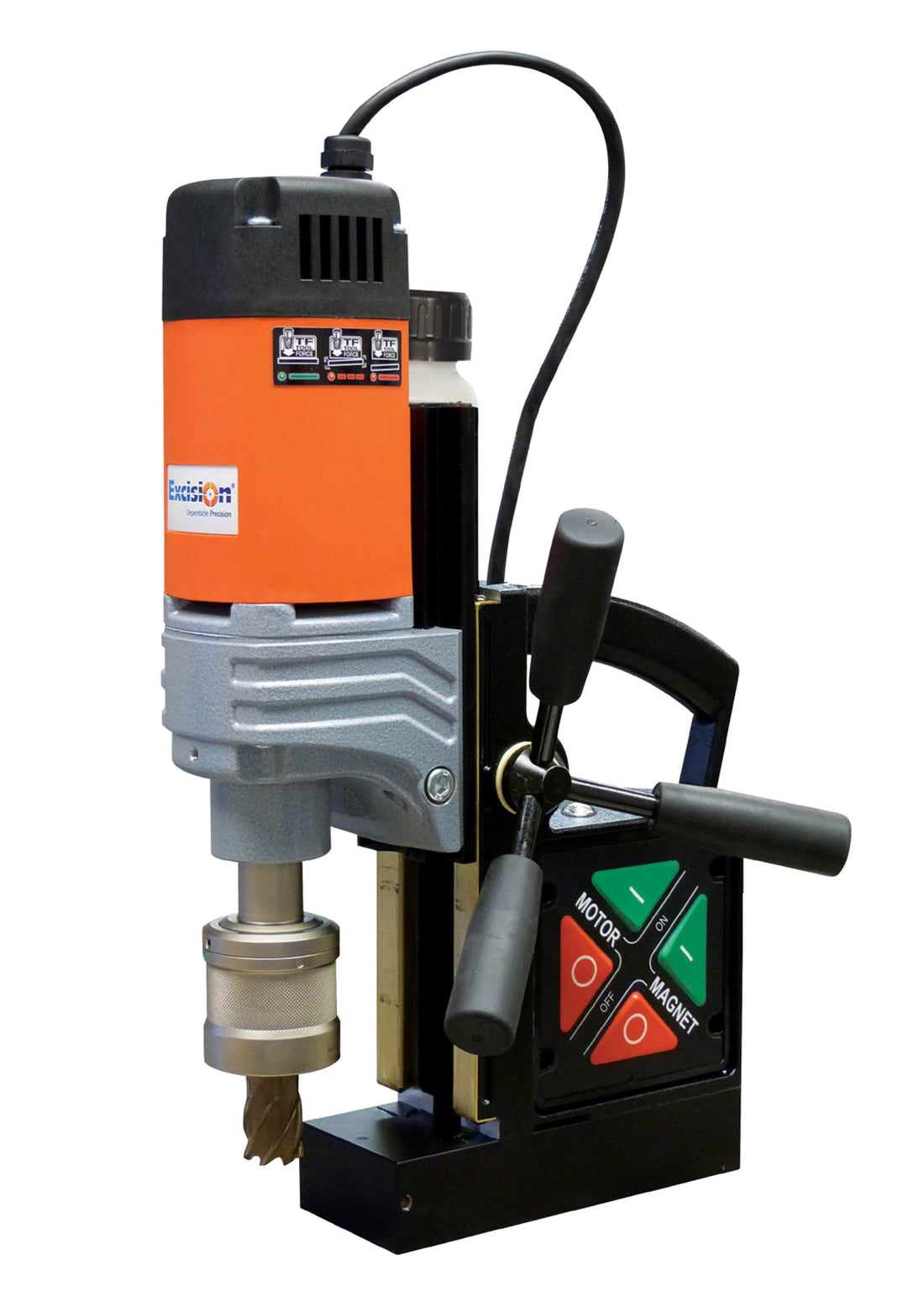

Excision EM50 RL-E Magnetic Drill
$4,158.00
Ex GST
Made in Germany, the Excision EM50 RL-E Magnetic Drill, with its forward reversible drive and two-step variable speed oil bath gearbox, is suitable for tapping operations. The drill has a Morse Taper 2 spindle and is outfitted with precision brass guides.
- 2-Step Variable Speed Oil Bath Gearbox
- Forward-reversible drive - ideal for tapping
- 3 Coil 16000N Magnetic Adhesion
- Morse Taper 2 spindle
- Solid Brass Guides
| Drill Features and Specifications | |
| Core Drill Dimensions | 12.0-50.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
With quick-release chuck up to 20.0mm with MT3 DIN 345 direct |
| Counter-Boring |
10.0-40.0mm |
| Tapping |
Tapping Chucks: M3-M14 with tapping attachment: M3-M20 |
| Arbors |
MT2 |
| Stroke |
170mm |
| Height Adjustment |
100mm |
| 4-Speed Gearbox |
Right/Left 1. Step 100-250rpm 2. Step 180-450rpm |
| Power Consumption |
1,200W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
3,800N/16,000N |
| Magnetic Base |
92—238mm |
| Weight |
16.0Kg |
