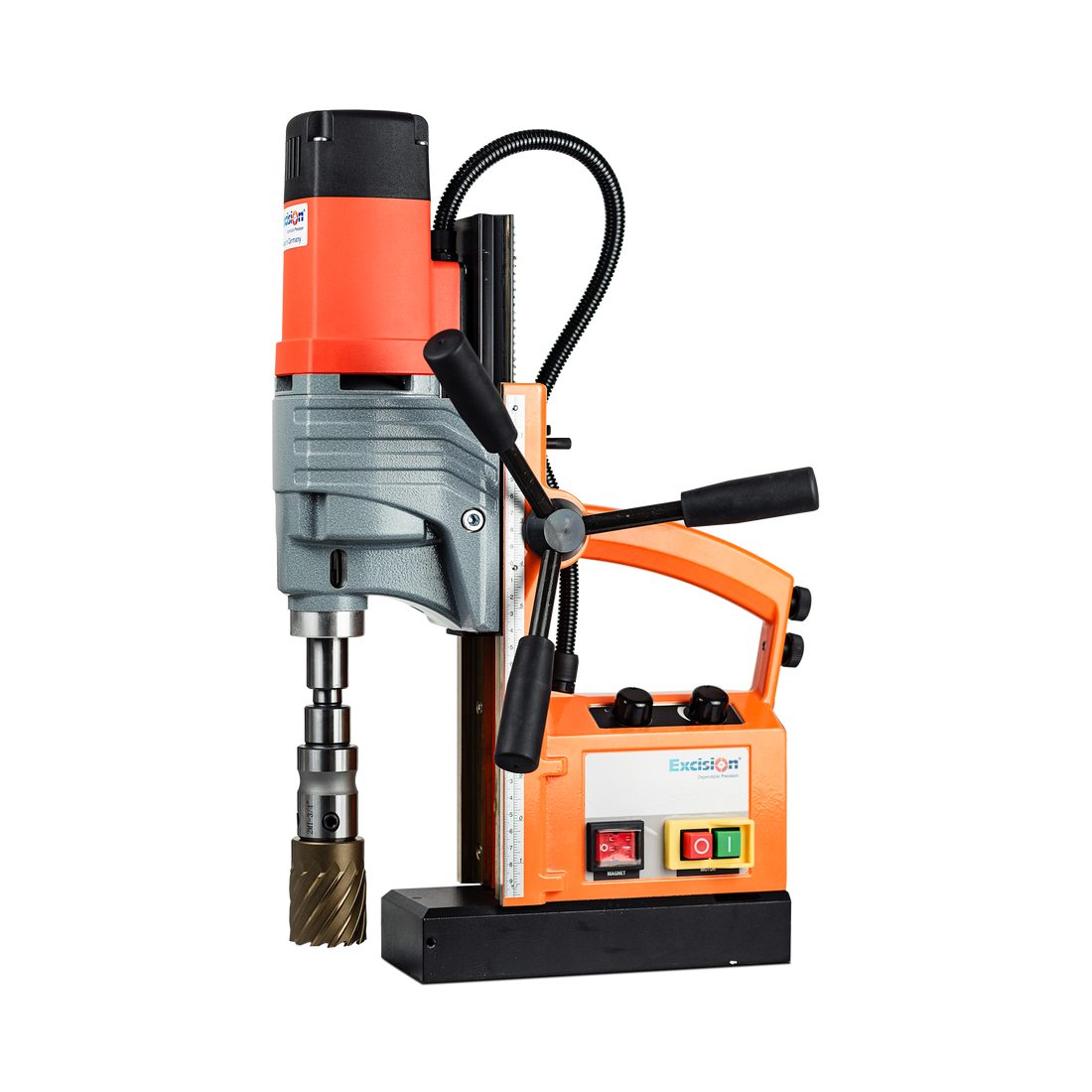

Excision EM80 RL-E Magnetic Drill

Excision

Excision EM80 RL-E Magnetic Drill

$5,357.00 Ex GST Sale • Save

Made in Germany, the Excision EM80 RL-E Magnetic Drill delivers impressive performance, including a tapping capacity of up to M30, a forward-reversible drive, a morse taper 3 spindle, and solid brass guides.

  • 3 Coil 20,000N Magnetic Adhesion
  • Tapping capacity up to M30
  • 4-Step Variable Speed Oil Bath Gearbox
  • Forward-reversible drive - ideal for tapping
  • Morse Taper 3 spindle
  • Solid Brass Guides
Drill Features and Specifications
Core Drill Dimensions 50.0-110.0mm
Cutting Depth 50/110.omm
Twist Drill

1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN
Counter-Boring

10.0-55.0mm
Tapping

Tapping Chucks: Up to M30 with Tapping Attachment: Up to M30
Arbors

MT3
Stroke

190mm
Height Adjustment

60mm
4-Speed Gearbox

1. Step 50-110rpm

2. Step 75-175rpm

3. Step 105-245rpm

4. Step 165-385rpm
Power Consumption

1,800W
Voltage

230V 50/60Hz
Tool Force (10mm)/Magnetic Adhesion Strength

4,000N/20,000N
Magnetic Base

92—238mm, 30° adjustable right and left, 10mm front and back
Weight

22.0Kg
