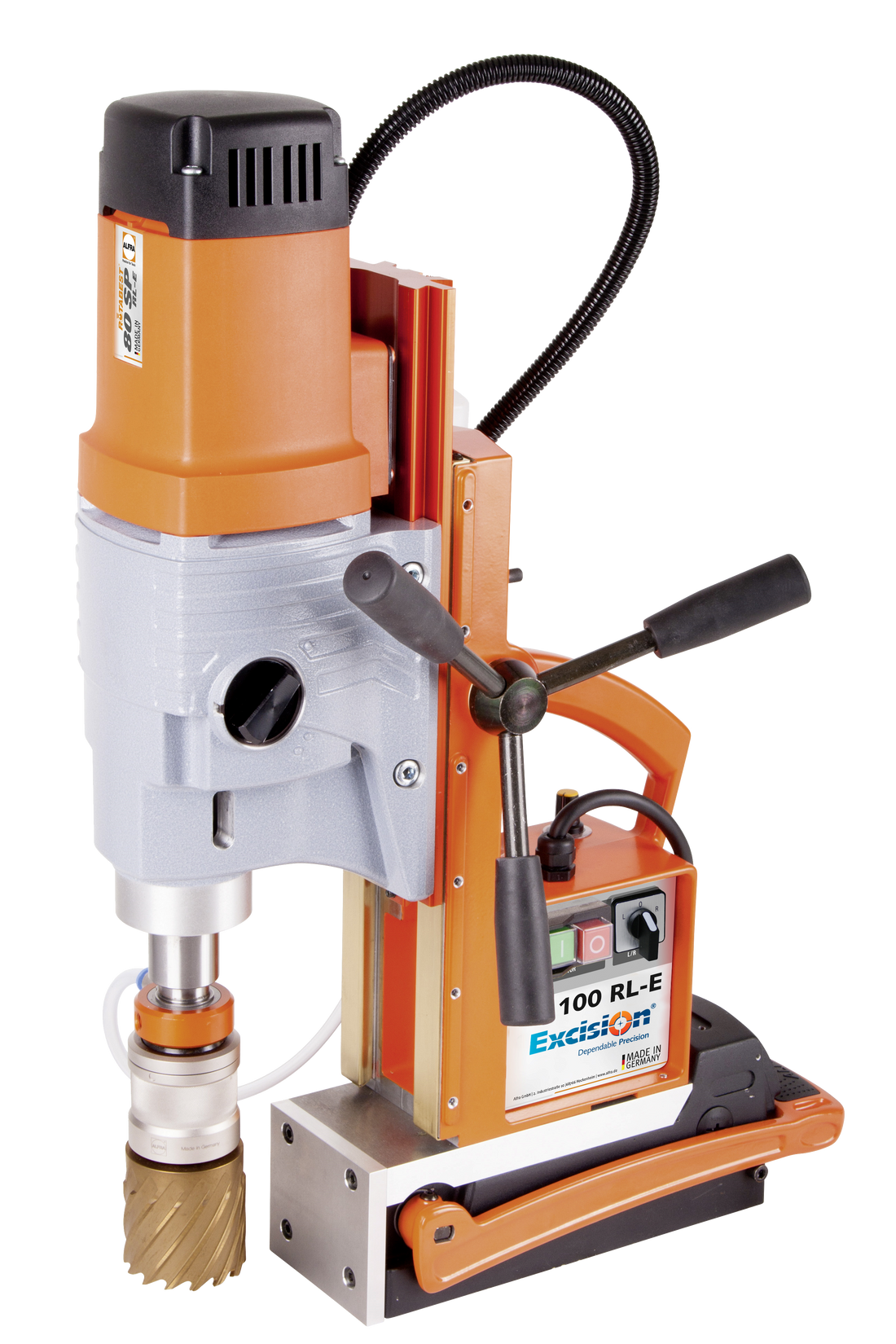

Excision Magnex Drill 100 RL-E

Excision Magnex Drill 100 RL-E

$5,874.00 Ex GST Sale Save

The Excision Magnex Drill 100 RL-E features an impressive magnet that needs no external energy source. This ensures adhesion to a wider range of steel, even on the lightest steel up to 1.6mm. Moreover, it includes a forward-reversible drive as well as a Morse taper 3 spindle that makes for efficient and simple tool swapping. Additionally, adjustable guides and a long-lasting 2-year warranty make it a dependable purchase.

  • Powerful permanent magnet - doesn't need a power supply
  • 4-step variable speed oil bath gearbox
  • Very light and compact
  • Forward-reversible drive - ideal for tapping
  • Morse Taper 3 Spindle
  • Solid Brass Guides
  • Self-Adjusting Guides
  • 2 Year Warranty
Drill Features and Specifications
Core Drill Dimensions 12.0-100.0mm
Cutting Depth 110.0mm
Twist Drill

1.0-16.0mm with drill chuck up to 32.0mm with MT3 DIN 345

Counter-Boring

10.0-55.0mm

Tapping

With Tapping Chucks: Up to M30

With Tapping Attachment: Up to M30

Arbors

MT3

Stroke

190mm

Height Adjustment

60mm

4-Speed Gearbox

Right/Left

1. Step 50-110rpm

2. Step 75-175rpm

3. Step 105-245rpm

4. Step 165-385rpm

Power Consumption

1,800W

Voltage

230V 50/60Hz

Tool Force (10mm)

2,500N

Magnetic Base

94—255mm

Weight

22.6Kg

Only 0 left in stock
