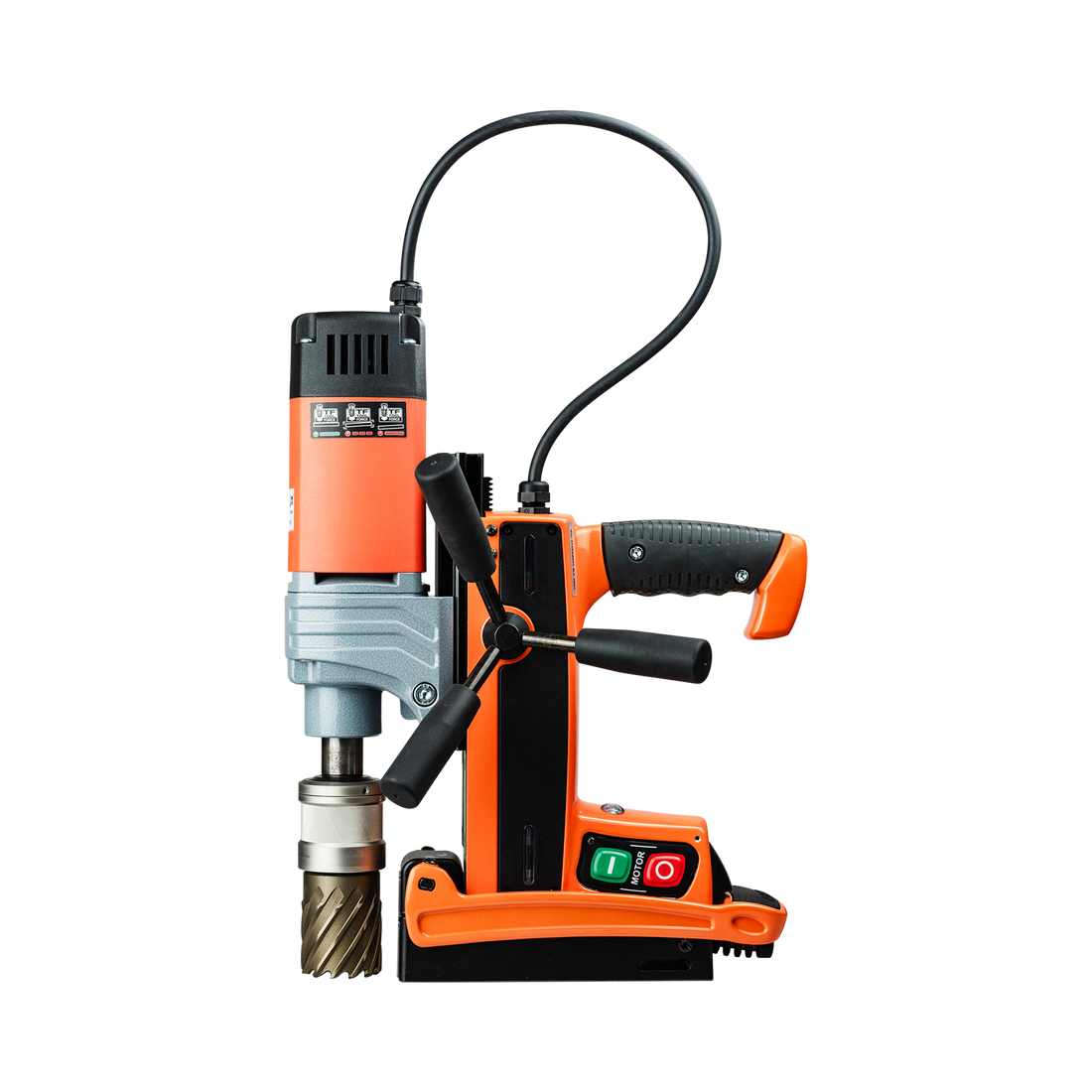

Excision Magnex Drill 40
$2,717.00
Ex GST
The Excision Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply. It's also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks.
- Powerful permanent magnet - doesn't need a power supply
- Very light and compact
- Smooth start motor with overload protection and emergency stop
- Stepless adjustment slides
- Self-adjustment guides
- Soft touch grips
- Membrane keyboard
- Quick-change chuck
- 105mm stroke
- Suits 19mm Weldon shanks
- Double dove-tailed height-adjustment for using drill chucks
- Ergonomic design
- Solid brass guides
| Drill Features and Specifications | |
 |
|
| Core Drill Dimensions | 12.0-40.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm |
| Counter-Boring |
10.0-40.0mm |
| Arbors |
Quick-Release Chuck |
| Stroke |
105mm |
| Height Adjustment |
80mm |
| Gearbox-On-Load Speed |
450rpm |
| Power Consumption |
1,100WÂ |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,800N/17,000N |
| Tool Force (6mm S235) |
2,300N |
| Magnetic Base |
72×190mm |
| Weight |
9.9Kg |
