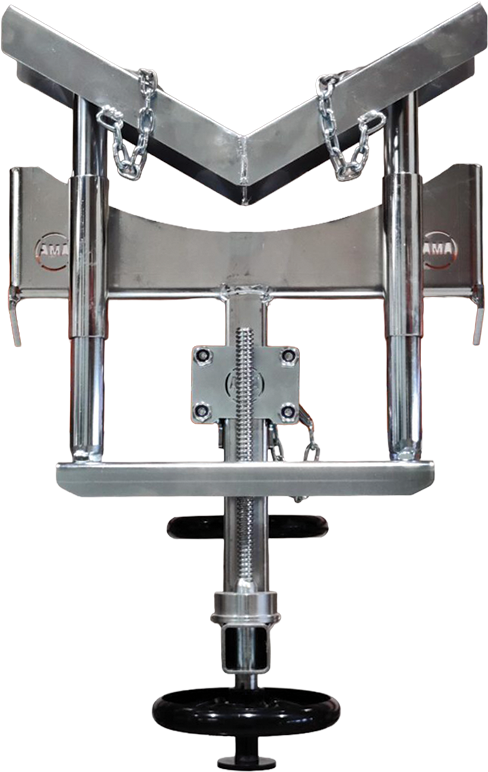

AMA® Pipe Bridge Stand
$1,290.00
Ex GST
The AMA Pipe Bridge Stands with stainless steel ball rollers make it easier to push and rotate a pipe in the pipe bridge. The pipe is lifted above the brackets with the AMA Pipe Bridge Stands, which allow it to roll smoothly on the stainless steel ball rollers.
- AMA® Pipe bridge stands are attached and firmly tightened to the beams of the pipe bridge. The number of stands needed depends on the length of the pipe.
- A safety strap is wrapped around the beam and both ends of the strap are attached to the pipe bridge stand. A safety strap must always be used to secure the attachment of the stand to the pipe bridge.
- The stand can be used with beams with a thickness of 80 – 300 mm.
- The handwheel is turned to lift the ball roller part of the pipe bridge stand above the pipe bracket.
- The pipe can be moved inside the pipe bridge on the ball rollers of the pipe bridge stands.
- When welding the pipe, the pipe can be rotated on the pipe bridge stands inside the pipe bridge.
- Finally, the pipe is lowered onto the pipe brackets by turning the handwheel, and the AMA® Pipe Bridge Stand is removed.
Technical information:
- Weight: approx. 12 kg
- Suitable for the pipe diameters: 15 -720 mm
- Ball-rollers: 30 mm stainless steel ball-rollers
- Load capacity of one AMA® Pipe Bridge Stand: 380 kg
