Introducing

Orbimax Cobot

Name: UR20 COBOT Package
Brand: Orbimax
Availability: InStock

Collaborative Welding Robot

Orbimax

UR20 COBOT Package

$0.00 Ex GST

Built for larger workloads and greater reach, the COBOT UR20 Package delivers powerful automation capabilities for demanding fabrication environments.

With enhanced payload capacity and flexibility, the UR20 is ideal for businesses looking to maximise throughput, improve repeatability, and future-proof their welding operations. Available as part of the EOFY Runout Campaign, this is the perfect opportunity to upgrade your workflow with advanced collaborative automation.

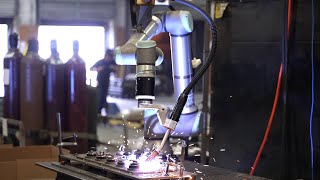

Address Skilled Welder Shortages & Scale Your Production Output

Keep your welding booths running and increase your workshop's throughput. The Collaborative Welding Robot (Cobot Welder) integrates a high-precision collaborative robot manipulator with professional synergic welding power sources (such as Fronius or Miller). It is designed to act as an automated tool in your welders' toolbox, taking care of high-mix, repetitive runs so your skilled fabricators can focus on complex preparation and specialty custom jobs.

Typical Applications & Industries:

High-Mix, Low-Volume Shops: Set up and automate small batches and repeat parts in minutes.
Structural Steel & Fabrication: Consistent multi-pass and high-performance MIG/Pulsed MIG preps.
Repetitive Sub-Assemblies: Reliable, code-compliant weld profiles that reduce rework and post-weld clean-up to zero.

Zero Programming

Welders register weld points directly by hand-guiding the torch in Gravity-Free mode and saving positions on the Smart Puck.

App-Based Parameters

Adjust travel speed, wire feed, and weaving configurations instantly on a phone or tablet using the intuitive control app.

Fast Deployment

Shipped fully assembled on a mobile cart with a grid table. Roll into position, connect power and gas, and start welding.

Cobot Welder Brochure

Cobot Welder Brochure (PDF)

Compatible Consumables

Clamps / Fit Up → MIG Welding Gun Parts → Welding PPE & Safety Gear →

What's Included (Full Turn-key Package)

The Orbimax Collaborative Welding Robot is delivered as a complete, ready-to-weld package.

1

Universal Robots Collaborative Arm

Available as a UR10e (1.3m reach) or UR20e (1.75m reach) arm. Exceeds standard robotic quality and safety expectations.

2

Miller Invision 352 MPa Power Source

Pulse MIG synergic welder providing excellent arc performance critical for steel, stainless steel, and aluminium.

3

Siegmund Welding Table

Industry-tough 1200mm x 812mm (System 16 grid) table, renowned for strength, precision, and quick setups.

4

Tregaskiss CA3 MIG Torch (Tough Gun)

Air-cooled robotic MIG torch engineered for high-volume durability, precision, and minimal downtime.

5

COBOT Control App

Smart, simple touch interface designed for any operator. No complex programming or robotic coding needed.

6

Welder Control Panel

Simple interface for operators to easily start, stop, and pause preset weld programs instantly.

Operational Benefits & Capabilities

Smart Puck Teaching: Move the robot by hand-guiding to register welds directly at the torch head—no programming pendants or complex code required.
App-Controlled Parameters: Easily customize travel speeds, weave frequencies, dwell times, and amplitudes on a smartphone or tablet app.
Collaborative Design (Cage-Free): High-sensitivity force-sensing torque sensors at each joint halt motion instantly on physical contact, allowing safe operation alongside your team.
Synergic Welding Interface: Integrates directly with professional wire feeders and synergic power sources to automate voltage and feed rate adjustments on the fly.
Mobile Cart Integration: Heavy-duty industrial welding base with caster wheels makes it easy to move the cobot from bay to bay to meet changing workshop demands.

System Technical Specifications

Welding Power Source	Miller Invision 352 MPa Pulse MIG Welder
Duty Cycle Rating	60% @ 350 Amps \| 100% @ 300 Amps
Manipulator Reach Radius	UR10e (1300 mm reach) or UR20e (1750 mm reach)
Positional Repeatability	±0.03 mm (high-precision pose accuracy)
Travel Velocity Range	1 to 80 Inches Per Minute (IPM)
Fixture Grid Table	Siegmund System 16 (1200 mm x 812 mm)
