GFX 3.0 Orbital Pipe Cutting and Bevelling Saw

GFX 3.0 Orbital Tube & Pipe Cutter - SFI Orbimax

GFX 3.0 Orbital Pipe Cutting and Bevelling Saw

Name: GFX 3.0 Orbital Pipe Cutting and Bevelling Saw
Brand: Orbitalum
SKU: ORB790144880
Price: 6990.0 AUD
Availability: InStock

$6,990.00 Ex GST

The Orbitalum GFX 3.0 is a highly compact, lightweight pipe cutting and bevelling saw designed specifically for thin-walled stainless steel tubes and press-fitting systems. Delivering right-angled, deformation-free cold cuts in seconds, it is the ideal prep solution for orbital welding in sanitary, food, and beverage fabrication.

Lightweight, high-precision orbital cutting for thin-walled tubes and elbow fittings

The Orbitalum GFX 3.0 is a highly compact, lightweight pipe cutting and bevelling saw designed specifically for thin-walled stainless steel tubes and press-fitting systems. Delivering right-angled, deformation-free cold cuts in seconds, it is the ideal prep solution for orbital welding in sanitary, food, and beverage fabrication.

Why Choose This Product?

Lightweight Portability: Weighing only 28.1 kg, it is easily transported around sites and workshops.
Second Saw Blade Position: Designed specifically to allow safe cutting of short lengths and elbow fittings.
Zero-Deformation Clamping: Multi-point Vice holds thin-walled pipes (6 mm to 78 mm O.D.) securely without scratching or squishing.
High-Performance Drive: Equipped with a 1.2 kW motor featuring electronic overload protection and speed regulation.

Application & Industry Use

Sanitary & Dairy Lines: Precision cuts for hygienic process lines.
Press-Fit Plumbing: Fast, square prep for mechanical press-fit couplings.
High-Purity Tube Prep: Essential for cleanroom automatic orbital welding prep.

Downloads & Resources

Operating Instructions (PDF) Parts List (PDF)

Compatible Parts & Consumables

Saw Blades → GF Top Cutting Oil → Gear Oil → Metal Cutting Fluid →

Key Features of the Orbitalum GF Series

Integrated line laser guide for highly accurate cut line alignment

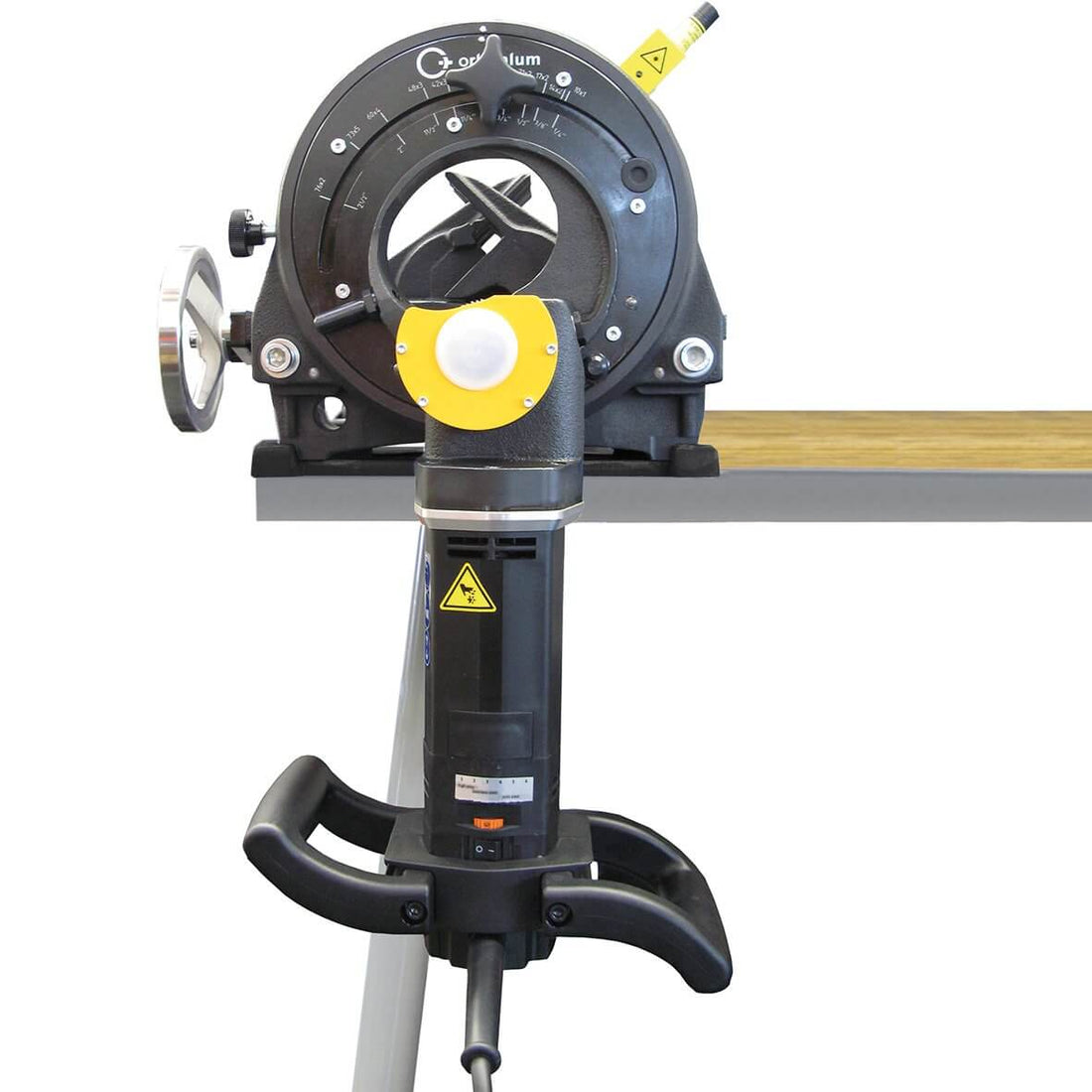

Ergonomic motor handle for safe and comfortable site operation
Sturdy cast-iron clamping vice with anthracite anti-corrosion coating
Overload safety shutoff with integrated temperature monitoring
Swivel cable quick-disconnect system to prevent cable twisting

Technical Specifications

Item / Model	Orbitalum GFX 3.0
Pipe Outer Diameter (OD) Range	6.0 - 78.0 mm (0.240" - 3.070")
Pipe Inner Diameter (ID) Range	4.0 - 76.0 mm (0.157" - 2.992")
Wall Thickness Range	0.8 - 7.0 mm (0.031" - 0.275")
Motor Drive	1.2 kW (1200 W) Drive Motor
Speed Range	30 - 200 rpm (Variable Speed)
Weight (Base Machine)	28.1 kg (62 lbs)
Weight (with MVM Module)	N/A
Weight (with AVM Module)	N/A

Technical Specifications Comparison Matrix

Specification	GFX 3.0 (This Model)	GF4	GF6	GFX 6.6	GF12	PS 4.5 (Battery)	PS 4.5 (Corded)
Pipe OD Range (mm)	6.0 - 78.0 mm	12.0 - 120.0 mm	21.3 - 168.3 mm	21.3 - 168.3 mm	157.0 - 325.0 mm	6.0 - 120.0 mm	6.0 - 120.0 mm
Pipe OD Range (inch)	0.240" - 3.070"	0.472" - 4.724"	0.839" - 6.626"	0.839" - 6.626"	6.181" - 12.795"	0.236" - 4.724"	0.236" - 4.724"
Wall Thickness Capacity	0.8 - 7.0 mm	1.0 - 9.0 mm	1.5 - 15.0 mm	0.8 - 7.0 mm	2.0 - 10.0 mm	0.6 - 3.0 mm	0.6 - 3.0 mm
Power Source / Capacity	1.2 kW (1200 W)	1.8 kW (1800 W)	1.8 kW (1800 W)	1.2 kW (1200 W)	1.8 kW (1800 W)	18V LiHD Battery	1010 W Corded
Feed Options	Manual Only	Manual / MVM / AVM	Manual / MVM / AVM	Manual Only	Manual / MVM / AVM	Manual Only	Manual Only
Weight (Base Machine)	28.1 kg	55.0 kg	92.7 kg	74.4 kg	138.6 kg	23.0 kg (with Battery)	23.0 kg
Primary Application	Thin-walled tubes & press-fits	Workshop cutting & bevelling	Heavy-duty industrial piping	Thin-walled tubes & elbows	Large-diameter industrial pipes	On-site portable cutting (cordless)	On-site/workshop portable cutting
