Orbimax End Purge Set
Orbimax End Purge Set
Orbimax End Purge Set
Orbimax End Purge Set
Orbimax End Purge Set
Orbimax End Purge Set

Orbimax End Purge Set

$802.00 Ex GST Sale Save

The Orbimax End PurgeSet saves time usually spent waiting for an acceptable purge to be reached while reducing the amount of gas required for purging.

The modular system accommodates common tube sizes, ideal for back purging when welding stainless steel tube to end fittings.

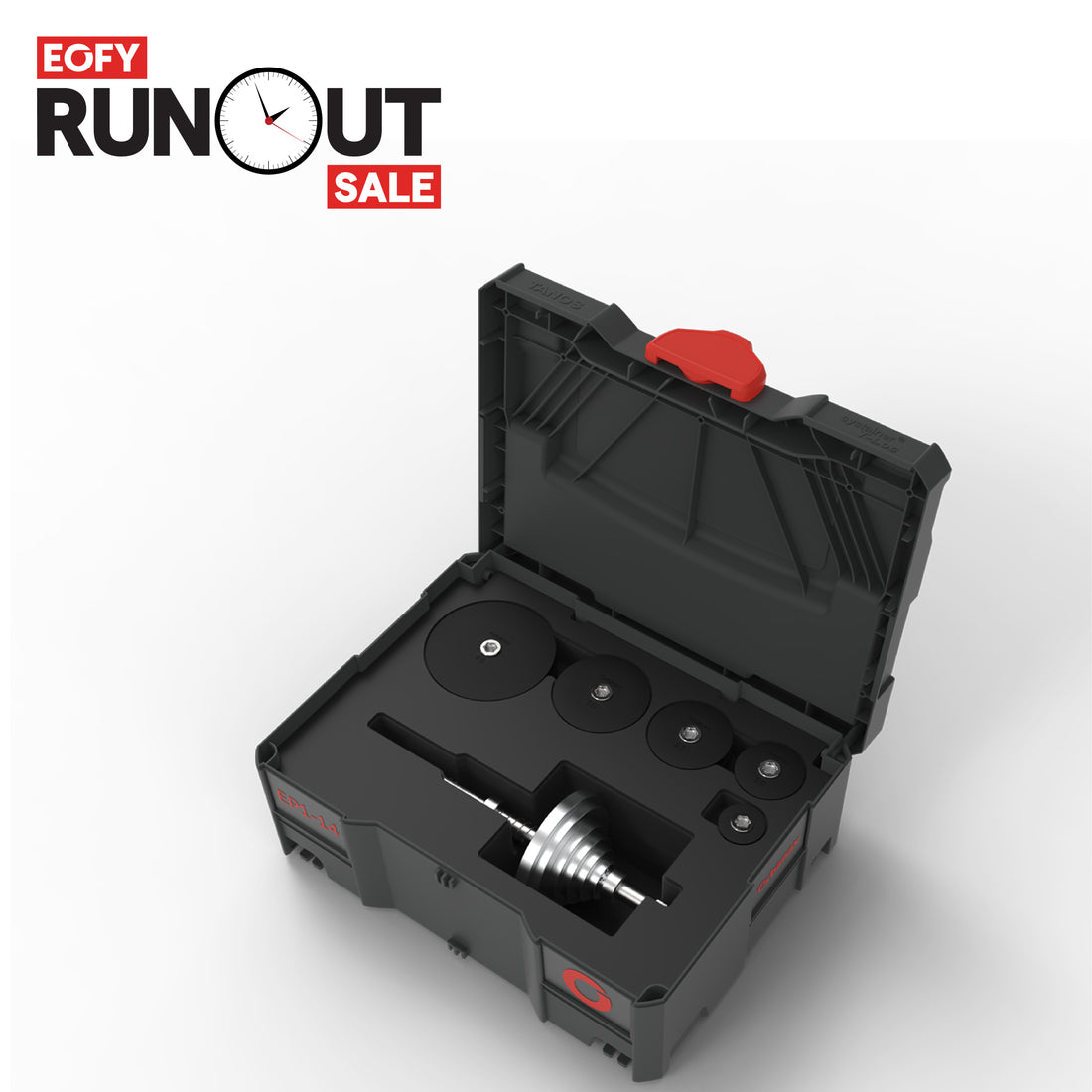

  • 1 of each Purge disc size (inch): 1.5, 2.0, 2.5, 3.0, 4.0
  • Spring Loaded Purge Wand
  • Stackable and interlocking Tanos Systainer carry case with hard wearing foam insert organiser

Key Features

FUNCTION

Creates an inner purge chamber when welding tube fittings to the end of a tube
Suits tube sizes (inch): 1.5, 2.0, 2.5, 3.0, 4.0
Shortens purge times, to save time and gas

PURGE DISC FEATURES

- Triple seal design prevents collapse and
maintains seal
- High tear resistance
- Flame retardant, UL94V-0

- HALOGEN FREE Silicone
Does not emit toxic fumes when exposed to high heat reducing the risk of damage to metals, welds and individuals
- Silicone material conforms to Regulation (EC) No. 1907/2006 (REACH) and RoHS
- Low toxicity
- Does not contain environmentally hazardous substances

Heat resistant (Short exposure at 350°C / Long exposure at 200°)

FITTINGS

SHAFT
SS316 material (uncoated)
- Corrosion resistant
- High heat resistance
- Reduce contamination

Shaft Collar
- Adjust the chamber length
- Assists in adjusting the spring pressure
- Chamber size adjustable with a metric hex key

Stepped End Plug
- Dual vent holes allow for probing to monitor the purge
- Uncoated Aluminium 6061-T6
machined from solid billet
- The lightweight design assists in the positioning of end fittings

Gas inlet fitting
- Suits Rectus Series 21 quick connect

Also Available with full Back Purge Kit

The Orbimax Back Purge Kit contains the full Orbimax product range of purge kits designed to assist welders in back purging prior to making a weld.

Back purging is the replacement of the existing atmosphere inside a tube with a supplied gas, commonly Argon. The Orbimax line of Back Purge Kits reduces the time spent waiting for an acceptable purge to be reached as well as the amount of gas required for purging.
