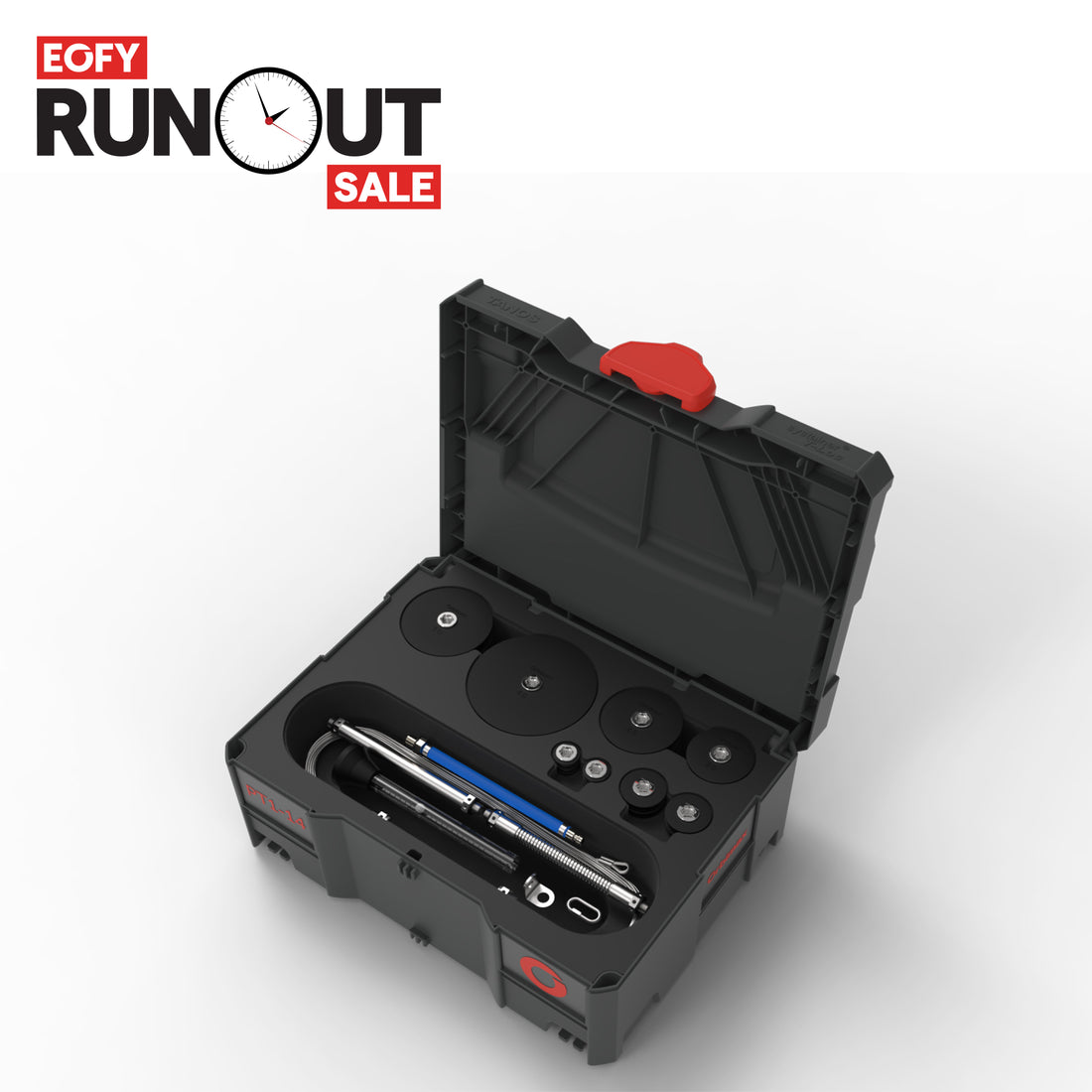

Orbimax Pull Through Purge Set
Orbimax Pull Through Purge Set
Orbimax Pull Through Purge Set
Orbimax Pull Through Purge Set

Orbimax Pull Through Purge Set

$714.00 Ex GST Sale Save

The Orbimax Pull Through PurgeSet saves time usually spent waiting for an acceptable purge to be reached while reducing the amount of gas required for purging.

Achieve precise purge purity to comply with demanding weld specifications when welding stainless steel tube and elbows.

  • 2 of each Purge disc size (inch): 1.0, 1.5, 2.0, 2.5, 3.0, 4.0
  • All metal components made from Stainless Steel 316
  • Rigid connector, 150mm
  • Flexible Gooseneck connector, 150mm
  • Flexible spring connector, 150mm
  • Short hose with Rectus Series 21 quick-connect plug
  • Quick connect link
  • Wire pull bracket
  • 10m wire rope, crimped loop at both ends
  • Handheld flowmeter
  • Stackable and interlocking Tanos Systainer carry case with hard wearing foam insert organiser

Key Features

KEY FUNCTIONS

The Orbimax Pull Through Kit is designed to be pulled through tube or pipe to create a purged internal chamber.

The purged internal chamber allows for precise purge purity to comply with demanding weld specifications when weld stainless steel.


- Suits tube sizes (inch): 1.0, 1.5, 2.0, 2.5, 3.0, 4.0
- Shortens purge times, to save time and gas
- Can be used to: Pull through elbows (with flexible spring connector), pull through straight sections (with rigid connector) or pushed into bends (with flexible gooseneck connector)

PURGE DISC FEATURES

- Triple seal design prevents collapse and maintains seal
- High tear resistance
- Flame retardant, UL94V-0
- HALOGEN FREE Silicone
- Does not emit toxic fumes when exposed to high heat reducing the risk of damage to metals, welds and individuals
- Silicone material conforms to Regulation (EC) No. 1907/2006 (REACH) and RoHS
- Low toxicity
- Does not contain environmentally hazardous substances
- Heat resistant (Short exposure at 350°C / Long exposure at 200°C)

FITTINGS

- Uncoated stainless 316 fittings
- High heat resistance
- Reduce contamination

Also Available with full Back Purge Kit

The Orbimax Back Purge Kit contains the full Orbimax product range of purge kits designed to assist welders in back purging prior to making a weld.

Back purging is the replacement of the existing atmosphere inside a tube with a supplied gas, commonly Argon. The Orbimax line of Back Purge Kits reduces the time spent waiting for an acceptable purge to be reached as well as the amount of gas required for purging.
